Outdoor 4G LTE CPE ODU Wireless Router
POE Power Supply
Built-in 5dBi antenna, cover a radius of 50-100 meters.
SIM card slot and Wan interface
Waterproof, dust-proof, lightning protection, High and low temperature resistance.
Send Inquiry
Product Details ofOutdoor 4G LTE CPE ODU Wireless Router
It is a 4G outdoor WIFI CPE that uses public 3G/4G networks to provide users with wireless long-distance data transmission functions. The product is with POE power and waterproof, widely used for outdoor solution.
Product Feature
* Support 802.3/802.11u protocol, 5* 10/100Mbps Auto MDI/MDIX
* Support 3G/4G
* Support watchdog feature
* Many kinds of way to protect your data transmission
Product Name | high power wifi router outdoor 4g lte cpe |
Country of use | (North America at & T, Australia / New Zealand / Taiwan / Brazil / Europe / Middle East / Africa / Korea / Thailand) |
3G4G band (4G band can be selected by yourself, and sales can be inquired) | LTE FDD: B1(2100MHz), B3(1800MHz) / B5(850MHZ) / B8(900MHZ)B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
Function | Support 3g4g direct SIM card, VPN / APN, QoS, etc |
Mainly applicable to Europe, Asia, Southeast Asia Australia Africa Middle East ans some South America many countries.
Hardware Specification
Chipset: MT7628NN
Memory: 512Mb DDR2 SDRAM
4G module: Embedded
Frequency: FDD:B1/3/5/7/8/20 TDD:B38/40/41 WCDMA: B1/5/8
Speed (CAT4)Max: FDD - LTE Downlink：150Mbps, Uplink: 50Mbps TDD-LTE: Downlink: 150Mbps, Uplink: 50Mbps HSPA+: 42Mbps (download speed) 5.76Mbps (upload speed) HSUPA: 5.76Mbps (upload speed)/ HSDPA: 7.2Mbps (download speed) UMTS: 384Kbps (download speed/upload speed)
WIFI: IEEE 802.11b/g/n WPA-PSK/WPA2-PSK Mixed mode up to 300Mbps Wi-Fi AP, Support up to 32 users
Outdoor unit | |
Speed (CAT4) Max | FDD - LTE Downlink: 150Mbps, Uplink: 50Mbps |
Chipset | MT7628NN |
Memory | 512Mb DDR2 SDRAM |
VPN | Support L2TP |
Lan | 1 x 10/100 Mbps Ethernet port(RJ45), |
Indicator | "Power", "Sim", "ETH", "Run" and "Signal" |
Antenna | Cellular: high gain Internal 5DBi |
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
Power | POE, through RJ45 port |
Reset | Restore the router to its original factory default settings |
Working temperature | -30~60℃ |
Humidity | ≤95% |
Dimension | 197*110*59 mm |
weight | about 300g |
Water proof and dust proof | IP65 |
POE Power Supply
The 24V 1A POE power supply supplies power to the device, and the POE port of the POE power supply is connected to the WAN port of the device.
1. POE power to power the device, 4G to WiFi.
The POE port of the POE power supply is connected to the CPE device, and the LAN is not connected. It just supplies power to the CPE equipment, and the CPE directly transmits WiFi for other terminals to connect to the network.

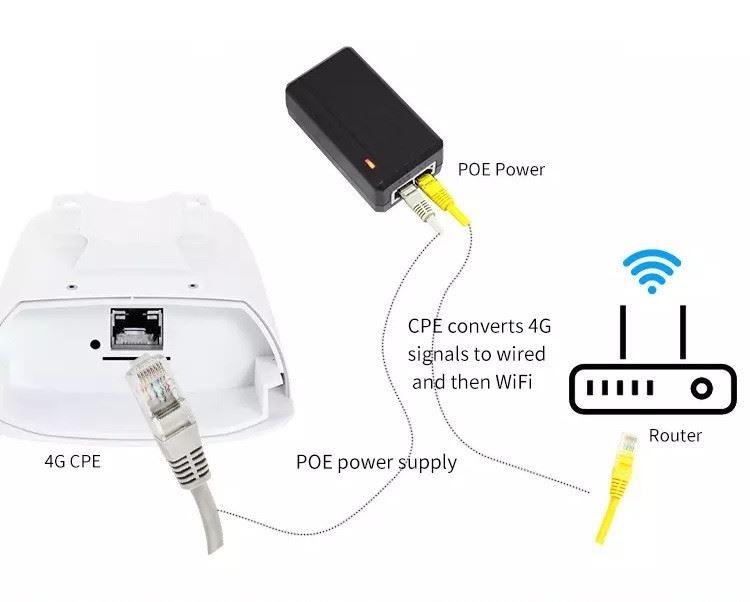

2. POE power supply, CPE equipment 4G to wired.
A. CPE converts 4G to cable, and then cable to cable.
B. CPE will switch 4G to wired, wired to WiFi

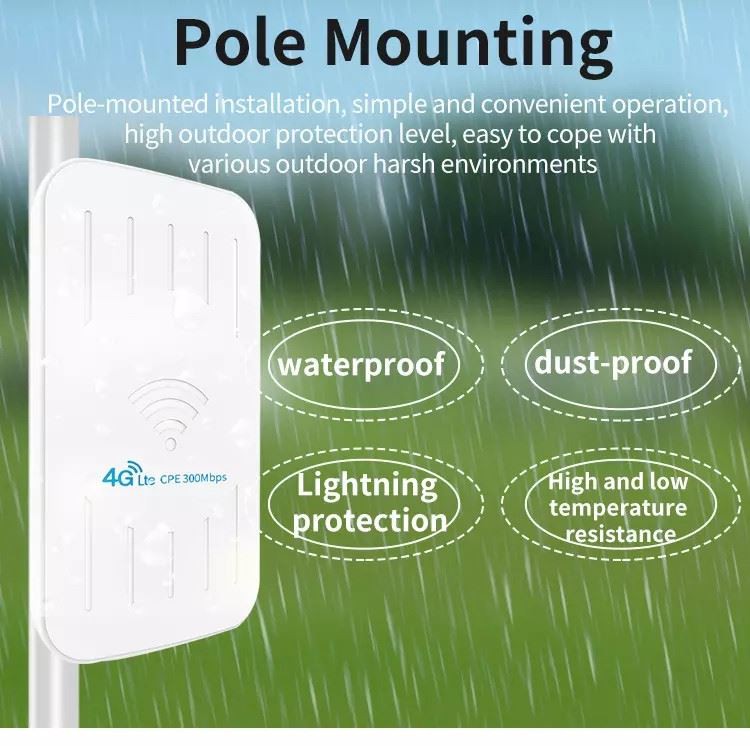

Pole Mounting
Pole-mounted installation, simple and convenient operation, high outdoor protection level, easy to cope with various outdoor harsh environments.
Built-in 5dBi antenna
Built-in omnidirectional 5dBi antenna can cover a radius of 50-100 meters, stable signal transmission speed, and meet outdoor Internet needs.
300Mbps
Watch high-definition videos, play games, watch VR movies, 300Mbps, whatever you want, play as you want.
