Portable 3G 4G LTE Wifi Modem
Auto drive installation
Customize software, Customize hardware available

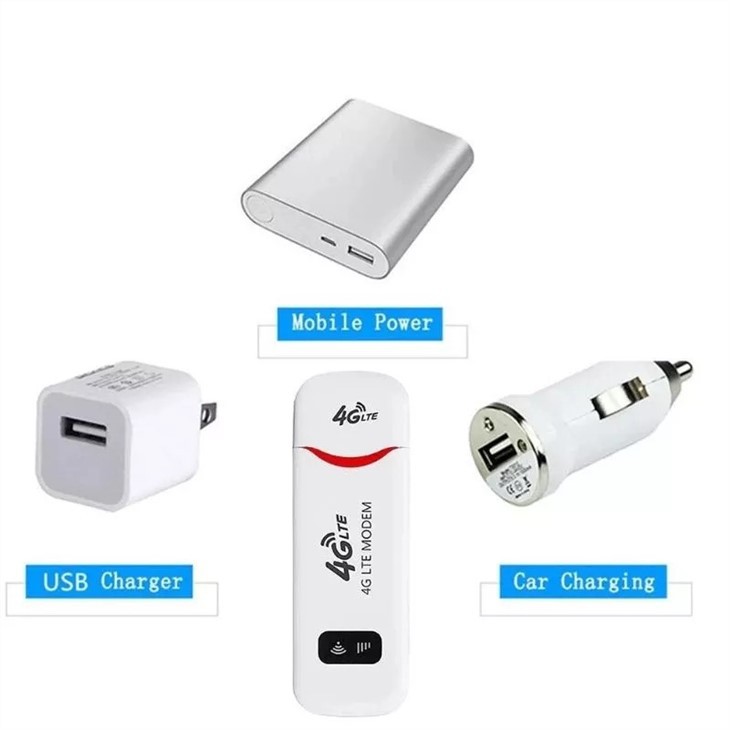

Plug power bank and get WiFi
Send Inquiry
Product Details ofPortable 3G 4G LTE Wifi Modem
* Unlocked
* Not only a 4G USB Modem, but also a USB Wi-Fi Router
* Wireless access is available on 3G, 4G network and Wi-Fi networks.
* High speed internet access, suitable both office and at home
* Transmission rate: 100Mbps
* It can also be used via notebook, laptop, UMPC and MID devices.
* OS support: Windows XP(SP2) / VISTA / Windows 7 (32bit/64bit) / Windows 8 8.1 Windows 10, Mac OS X 10.5 or higher 10.7
* CD-free installation, inserting a SIM card acts as a wireless router with simple operation.
* High Quality Chipset Qualcomm MDM9200
Specification:
Description | Software customization 2.4G WiFi 150mbps Cat 4 USB2.0 dongle |
Application Scenarios | Home, Office, IoT, Security, Journey |
Concurrent Clients | 10 |
CPU | MDM9610/9200 |
Flash/Memory | FLASH 1Gbit/512 RAM |
SIM Card | 2 FF |
WiFi | IEEE 802.11b/g/n up to 150Mbps |
Chipset Qualcomm: MDM9200 | |
RF antenna | 2*2 MIMO, FPC |
Peak Rate | Cat 3: FDD-LTE: DL 100Mbps, UL50Mbps |
Cat 3: TDD-LTE: DL 100Mbps, UL50Mbps | |
Frequency | 2.4G |
Wifi Feature | Transmission distance: Default coverage radius 100m (open environment) |
1~11 Channel (North America / Canada) | |
1~13 Channel (Europe / Australia) | |
1~14 Channel (Japan) | |
SSID broadcast | |
WPA-Personal,WEP (64-Bit), WEP (128-Bit) | |
Language | English/ French/ German/ Spanish/ Portuguguese/ Arabic others can be added per request |
Browser | Google Chrome, Mozilla Firefox, Microsofte IE, 360 IE/ucweb |
Settings | WIFI Parameter |
Login Password | |
Apn add/Edit/Delete | |
Network Mode | |
DHCP Server | |
Mac Filter | |
USB port | USB2.0 that is used to provide internal power supply; input 5V/1A |
Power Supply | DC 5V/1A |

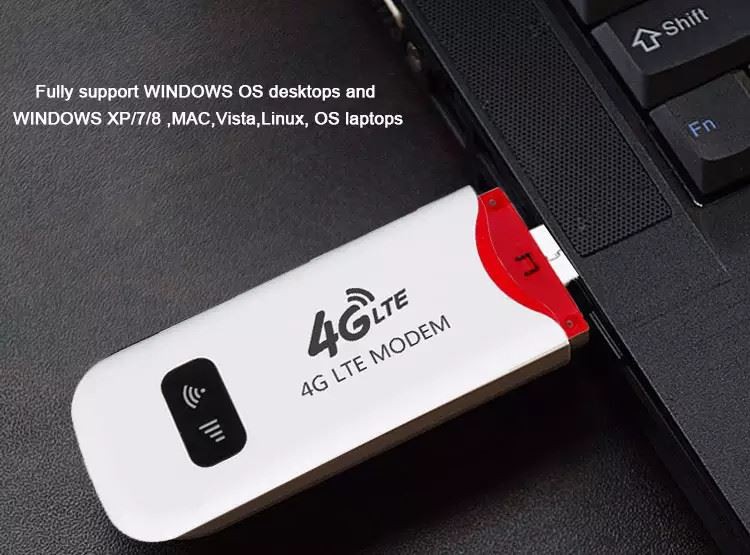

Compatible OS | Android, Windows XP/7/8.1/10, Mac, Linux |
Sleep Mode | Automatic |
Frequency | FDD: B1/B3/B7/B8/B20; WCDMA: B1/B5/B8; GSM: 850/900/1800/1900 |
FDD: B1/B2/B4/B5/B8/B17; WCDMA: B1/8 | |
Operating Environment | Operating Temperature: Normal: 0°C to +45°C Operating Humidity: -20° C to +70° C Operating Humidity: 5%~ 95% Storage Humidity: 5%~ 95% |
Dimension | Device: 90*35*10mm |
Pack Box: 115*70*20mm | |
200pcs/ctn; CTN size: 30*30*30cm; G.W.: 11Kg/ctn | |
Package | Device*1, User manual*1pc |
How to Use it ?
Support 10 devices at the same time
Application:
Sharing WiFi anywhere
FAQ:
Q1. I didn't find my needed model in this page.
Dear Friends, ecatalog will emailed to you asap when you contact with us. Also, we supply customization service. So, contact us !
Q2. Can I customized my order?
Yes, OEM/ODM service is available. Customized logo/package/color. For details, Please kindly contact the sales persons.
Q3. Can I ask for samples before placing an order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. How does your company do regarding quality control?
Our QC team will do strict quality control inspection before shipment to assure best quality.
Q5. What is your payment terms?
For sample: PayPal, West Union; for mass order: T/T or other negotiable terms.
Any question, please send email or contact the instant mobile for answer please!
