Smart WiFi 5G NR Indoor CPE Router Unlocked
1 *RJ11 support VoNR VoLTE or VOIP
Support more than 64 users Gigabit RJ45 LAN Ports
Send Inquiry
Product Details ofSmart WiFi 5G NR Indoor CPE Router Unlocked
Smart WiFi 5G NR indoor CPE router unlocked
CP510 is a 5G indoor multi-service product solution, specifically designed to meet the integrated data of residential and corporate users. The product supports Gigabit networks and dual-band Wi-Fi AP functions. CP510 is a high-performance 5G indoor CPE. It is suitable for household or commercial scenarios that require rapid deployment of wired broadband networks and WiFi hotspots. It supports NR (SA & NSA), TDD-LTE, and FDD-LTE; converts cellular network data to Wi-Fi and wired network port data; supports 4 gigabit LAN ports; supports 2.4G + 5G dual-band Wi-Fi-AP; and supports phone functions.
High-performance chipset
Built-in UNISOC :CP510 Realtek :8198D .it has best 5G mobile network performance and works with integrated worldwide 5G 2G multi-mode.
Peak Throughput
TDD /FDDLTE :Category 12 with 450Mbps (DL)
TDD /FDDLTE :Category 13 with 150Mbps (
5G NR :1 .25Gbps( UL),2.45 Gbps (DL)
Gigabit Ports
Gigabit RJ45 LAN Ports 10 /100/1000auto-sensing.The LAN port allows you to connect PC to surf internet via CPE.
2 ways to get online
4 Gigabit RJ45 LAN Ports 10 /100/1000auto-sensing. Both card Internet access and broadband support.
64 +Clients
Provide more mobile terminal access capabilities to meet the full-scenario ,access needs of future smart home rich nodes.
360°omnidirectional antenna
Industrial design standards ,support ultra-high-definition video playback.

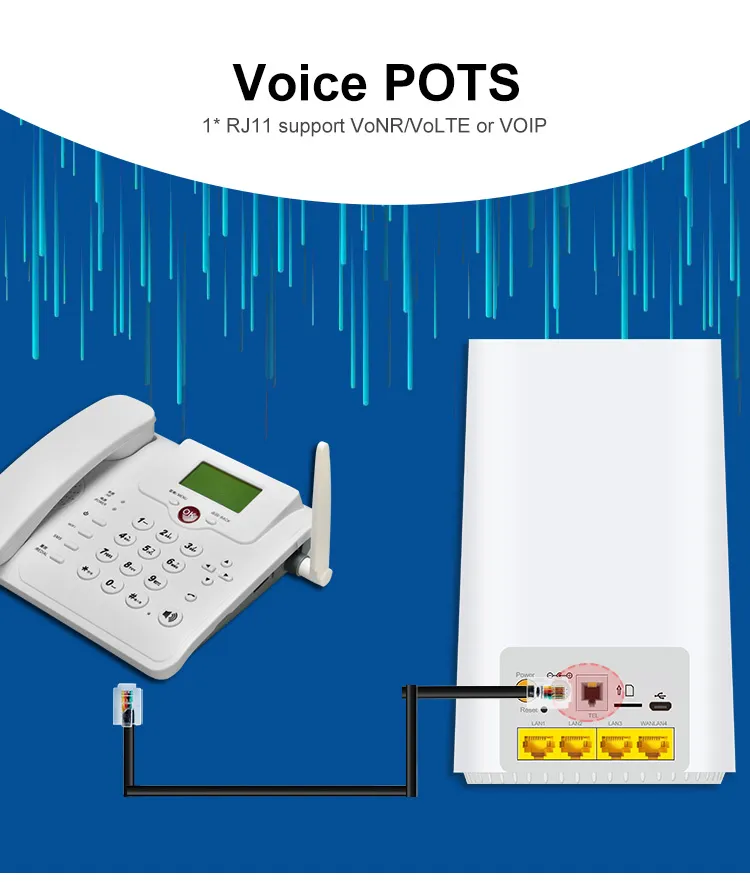

Voice Pots
1 *RJ11 support VoNR/VoLTE or VOIP
Specification :
|
Hardware |
||
|
Chipset |
Realtek: 8198D |
|
|
Cellular mode |
NR/TDD-LTE/FDD-LTE/WCDMA /TD-SCDMA/GSM |
|
|
Flash |
2G |
|
|
RAM |
DDR3 2Gb |
|
|
Interface |
4 *10/100/1000 Mbps, LAN1 or set up as WAN 口 |
|
|
Phone port |
1* RJ11 |
|
|
Indicator light |
9 LED Indicators (Power source, WIFI, WPS, data connection, 3 color signal lights, 4* network port lights) |
|
|
SIM card |
1*SIM (FF) support 1,8v & 3.3v Adaptive |
|
|
One key reset |
reset |
|
|
Antenna |
6 built-in cellular antennas + 2 WIFI antennas |
|
|
Size |
L*W*H：117*117*180mm |
|
|
Power Consumption |
< 24W |
|
|
Power |
DC 12V/2A |
|
|
Working temperature |
-10°C--45°C |
|
|
Storage temperature |
-45°C--85°C |
|
|
5G main indicators |
||
|
3GPP Release 15 ,NSA&SA |
||
|
Support frequency band |
N78\79\41 |
|
|
CA |
TDD 3CC;FDD 1CC + TDD 2CC |
|
|
MIMO |
Support: Downlink 4* MIMO, Uplink 2* L MIMO |
|
|
Support bandwidth |
5M, 10M, 15M, 20M, 25M, 30M, 40M, 50M, 60M, 80M, 90M,100M |
|
|
SCS |
30khz, 15khz |
|
|
IPv4& IPv6 |
Support IPv4,IPv6,IPv4&IPv6 dual stack |
|
|
Downgoing mean speed |
1.7Gbps(@100MHz 1CC, 4RX, 256QAM) |
|
|
Average upward velocity |
1Gbps(@100MHz 1CC, 2TX, 256QAM) |
|
|
Output power |
23±2 dBm, Support high power mode |
|
|
Antenna |
Internal 6 antennas |
|
|
Antenna gain |
3-5 dBi |
|
|
Routing mode |
||
|
LAN |
You can set 2 IP addresses for 2 different networks on the LAN side |
|
|
WAN |
Can be dynamically set WAN IP |
|
|
Routing Protocol |
Support static routing |
|
|
DNS |
support Ping/ trace route/ tcpdump |
|
|
Public IP allocation |
Support settings |
|
|
NAT |
||
|
NAT |
Support NAT function |
|
|
Firewall |
Support firewall function |
|
|
Routing Protocol |
Static routing |
|
|
DMZ |
Support |
|
|
DHCP |
Support |
|
|
DNS |
Support setting automatic DNS and manual DNS |
|
|
WIFI function |
||
|
Users can turn off/on the WIFI function through the WIFI switch or web page |
||
|
WIFI parameters can be configured through the web page: SSID name, whether to hide SSID, rate, mode, channel, etc. |
||
|
Support configuration encryption method: No encryption, WEP-OPEN, WEP- SHARED, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), WPA2-PSK (AES) |
||
|
Support WPS: Support PBC mode |
||
|
WiFi Protocol support: IEEE 802.11 b/g/n (2.4 GHz) ,IEEE 802.11 a/n/ac (5G) |
||
|
WiFi Support the maximum number of users: 64 |
||
|
Support multiple SSID |
||
|
Support automatic channel and manual channel |
||
|
Support guest mode |
||
|
Firewall |
||
|
Allow Ping device from WAN port |
||
|
Allow HTTPs access from WAN |
||
|
Support management from WAN via HTTPs |
||
|
Support DMZ IP address |
||
|
Support ICMP redirect |
||
|
Support IP filtering |
||
|
Support MAC filtering |
||
|
Support URL filtering |
||
|
Support UPnP |
||
|
Support port forwarding |
||
